Polyamide PA66 Heat Insulation Strips Extruder Thermal Break Strip Production Line
Product Introduction:
Automatic PA profiles extruding machine is for the production of polyamide thermal break profiles, which used in aluminum windows and doors.
Many customer use thermal break aluminum profile to do windows and doors to keep the heat from being affected by cold air, then make use of energy saving.
We provide high quality PA profiles extruding machine along with various molds and raw material-PA66GF25 granules, and also the subsequent technical assistance. This machine includes raw material auto feeding machine, hopper dryer, main engine, frequency converter and gearbox.
Processing Technique:
Nylon material → drying → heating → extrusion → stereotype → finished product
Parameters of Single Screw Reactive Extruder
| Production Speed | Around 8-14cm/min |
| Strip Shape | All kinds of shape |
| Raw Material | PA6.6 granules reinforced by 25% glass fiber |
| Cooling | Water Cooling |
| Usage | Produce thermal break strip |
| Type | Plastic extrusion machine |
| Winding Machine | Available |
| Cutting Machine | Available |
| Worktable | Available |
PA66GF25 Polyamide Profiles Extrusion Machine Including:
- Automatic feeding machine
|
| |
- Main PA strip extrusion machine
|
| |
| |
| |
| |
| |
| |
Machine Characteristic:
1. The barrel is heated by stainless steel heater, withstand voltage 400V
2. The professional dryer makes raw material convection with hot air uniformly, and the drying uniformity is good. Its thermal insulation structure prevents heat dissipation and promotes energy saving.
3. Special new screw make sure the machine has low energy consumption, good plasticizing ability and stable extrusion flow.
4. The extruder uses high-quality carbide twin-screws to ensure high plasticization of PA66GF25 granules
5. One temperature control zone controlled by one table, and the temperature accuracy can be controlled at ±1℃.
Application of polyamide strip
1. Used for thermal break aluminum window, door, curtain and walls
2. Many customer use thermal break aluminum profile to do big air conditioner to keep heat of cold air, then make use of energy saving
Our Service
One to one consulting service
Experienced senior engineer to discuss technical data, designed drawing
Perfect arrangement of sea or air transport
Overseas aftersales service
Professional engineers team
Welcomed to visit the factory at any time
Choosing Polywell means choosing the certainty of a reliable partner, able to team up and offer daily support. We are where you need us, whenever you need us.
Production Time
30-38 working days after receiving the deposit
Payment
50% T/T before production, 50%T/T before shipment
Our Factory
Please feel free to contact us if you have any questions.
Camille
E-mail: camille@szpolywell.cn
Tel:86-13584481777
Wechat: Camille_4790
Address: Zhangjiagang City, Jiangsu Province, China
Product Tags:
|
|

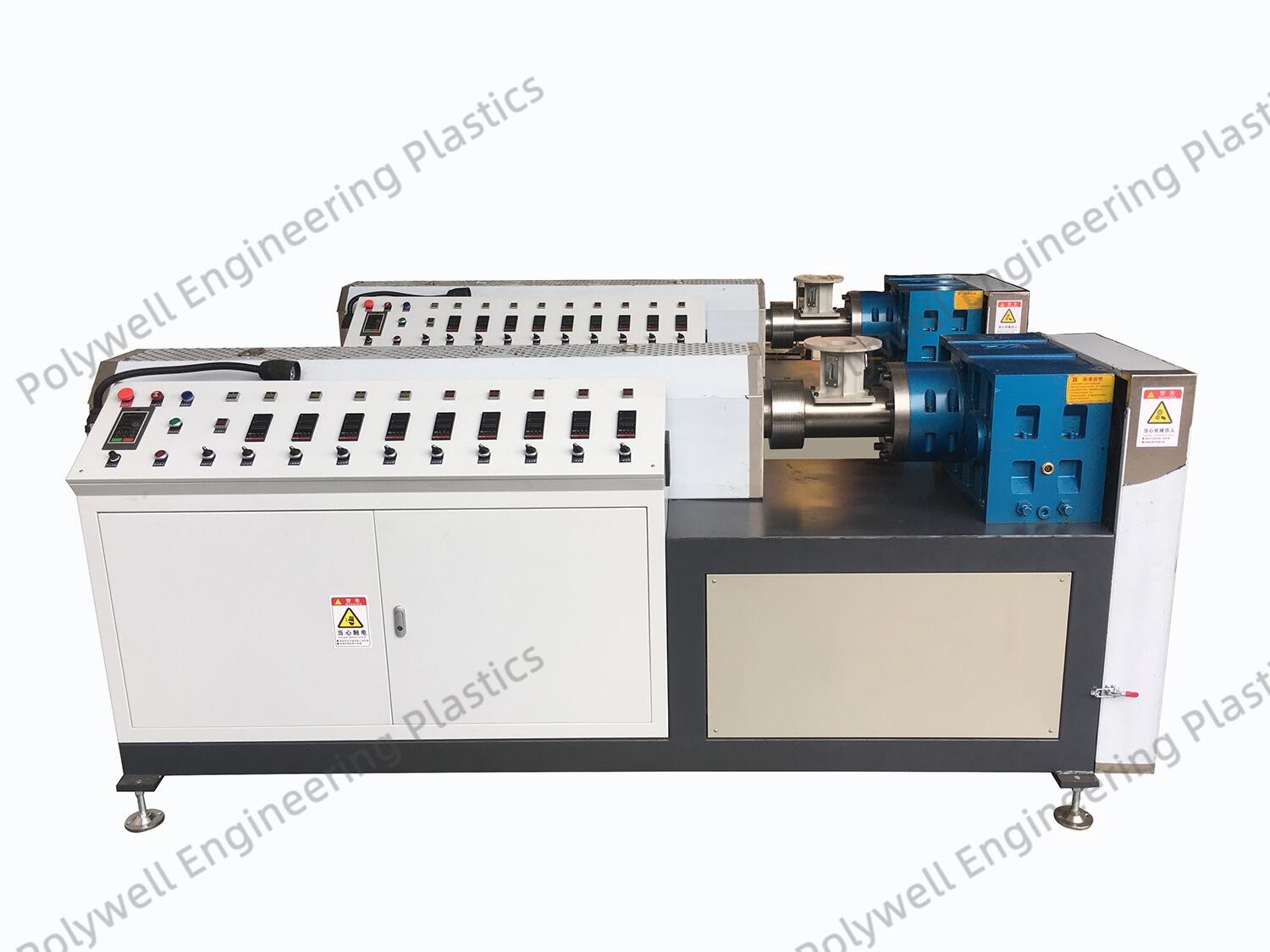

Polyamide PA66 Heat Insulation Strips Extruder Thermal Break Production Line Images
|
